  • 名称:反应釜电加热炉

  • 分类:汽车内饰件成型

产品详情

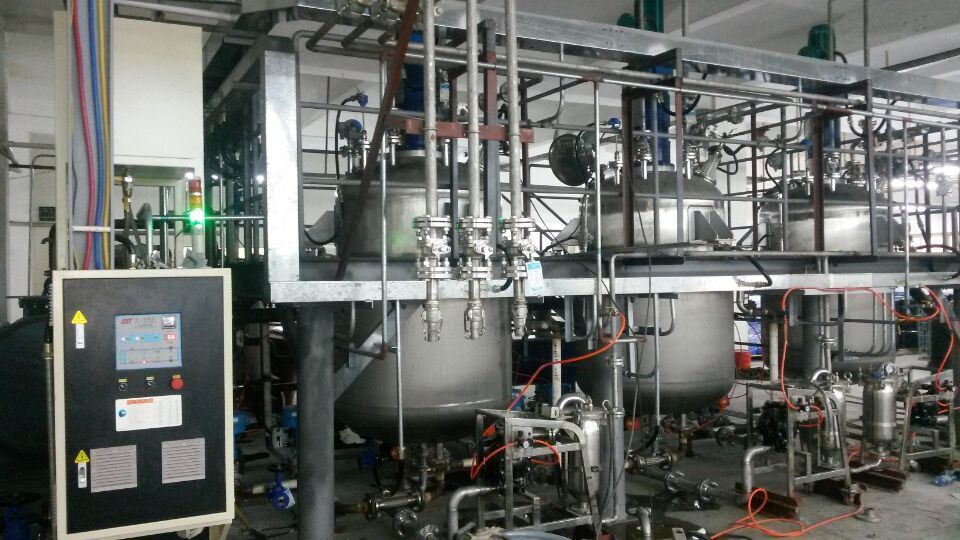

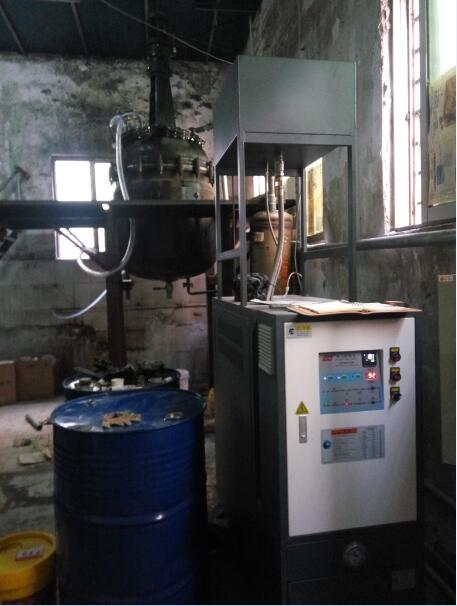

反应釜高温油温机油温机是以导热油作为媒介的模温机,也可以称作油加热器、油温加热器、油循环控温机。
特 点:
Features
管路防爆装置
Explosion-proof equipment for pipelines
吹气回油功能
Air blowing and return oil return function
回油温度显示表
Thermometer for return oil
开机自动排气功能
Automatic air-exhausting function after startup
加热功率切换功能
Switchover of heating power
负压系统运转(选购)
Negative-pressure system (optional)
RS485通讯功能,实现自动化管理(选购)
RS485 communication function for automated management (optional)
即时冷却关机功能(选购)
Instant cooling return oil shut-down function
隔离式电器控制箱,延长电器使用年限
Isolated electric box for longer services lives of electric appliances
热油BY-PASS泄压回路
BY-PASS pressure release loop for hot oil
多点温度控制机组可订作
Customizable multi-point temperature control unit
油泵马力和加热功率可订作
Customizable horsepower and heating power of oil pump
电器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
温度控制范围: 进水温+25℃→300℃
Range of temperature control: +25℃→450℃ for incoming water
304不锈钢一体管路,减少管阻及锈垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用进口微电脑或(选购)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保护完善,故障显示, 维修.保养无需专业人员
Perfect safety protection, fault display, easy repair and maintenance even free of professionals


应用范围:辊轮加温、平板硫化机控温、反应釜控温、复合机控温、射出成型模具控温、捏合机加温、锌铝合金压铸、镁合金射出成型。

模型Model

单位UNIT

TOB-20

TOB-30

TOB-50

TOB-75

TOB-100

TOB-150

温控范围 Control range

300℃

温控精度 Temp.control accuracy

PID±1℃

电源 Power supply

AC 3φ380V50HZ(or other)或其它

传热媒体 Heat.transfer medium

导热油CEAT TRANSFER OIL

 冷却方式 Cooling method

间接冷却INDIRECT C00LING

加热能量Heating capacity

KW

18/24

24/30

36/50

60/70

80/100

110/150

泵浦马力(功率)Horsepower of Pump

HP/KW

2/1.5

3/2.25

5/3.75

7.5/5.6

10/7.5

15/11

泵浦工作流量 Working flow of pump

L/MIN

50

180

250

300

500

750

泵浦工作压力Working pressure of pump

KG/C㎡

2.5

2.8

3.2

3.8

4.9

4.0

大电力消耗Maximum power consumption

KW

19/26

26/27

29/50

66/68

72/100

106/132

警报功能 Alarm function

缺相/缺油/超温/过载/反转

冷却水配管Cooing water pipework

INCH

 1/2

 1/2

 1/2

 1/2

 1/2

 1/2

循环油配管Circulation oil pipe

INCH

3/8x2

3/8x4

3/8x4

3/8x4

3/4x4

(3/8x4)x2

外型尺寸   LxWxH

MM

1050x420x960

1050x420x960

1560x580x1310

2000x600x1600

2000x600x1600

2000x600x1600

重量 Weighht

KG

/

/

/

/

/

/

以上规格如有变更,恕不另行通知,特殊规格及多机一体机型可定制。Special design upon request
