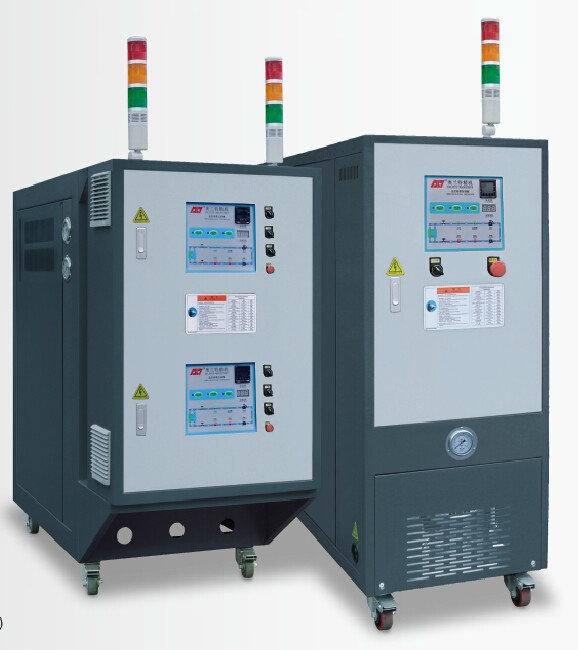

  • 名称:350度油温机

  • 分类:铝合金压铸模温机

产品详情

350度油温机_上海高温油温机_高温油温机价格性能特点:

1、管路防爆装置
Explosion-proof device for pipelines
2、回油温度显示表
Thermometer for return oil
3、开机自动排气功能
Automatic air-exhausting function after startup
4、油泵反抽回油功能
Return oil back suction of oil pump
5、加热功率切换功能
Switchover of heating power
6、隔离式电器控制箱,延长电器使用年限
Isolated electric box for longer services lives of electric appliances
7、负压系统运转(选购)
Negative-pressure system (optional)
8、RS485通讯功能,实现自动化管理.(选购)
RS485 communication function for automated management (optional)
9、即时冷却回油关机功能
Instant cooling return oil shut-down function
10、热油BY-PASS泄压回路
BY-PASS pressure release loop for hot oil
11、油泵马力和加热功率可订作
Customizable horsepower and heating power of oil pump
12、全系列采用德国SPECK油泵(磁力泵、漏油)
SPECK oil pumps (magnetic pumps never suffering from oil leakage) imported from Germany for all series products
13、全系列采用欧美高温管路元件
American and European high-temperature pipeline components for all series products
14、电器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
15、温度控制范围: 进水温+25℃→350℃
Range of temperature control: +25℃→350℃ for incoming water
16、304不锈钢一体管路,减少管阻及锈垢
304 stainless steel integrated pipelines for less pipe resistance and rust
17、控制方式: 采用进口微电脑或(选购)PLC控制
Control mode: imported microcomputer or PLC (optional)
18、安全保护完善,故障显示,维修.保养无需专业人员


机器规格

模型

单位

TOH-18

TOH-36

TOH-48

TOHS-18

TOHS-36

TOHS-48

温控范围

常温-350℃

温控精度

PID±1℃

电源

AC3∮380V

传热媒体

导热油

冷却方式

间接冷却

膨胀箱容量

L

25

25

30

42

42

50

加热能量

KW

9x2

12x2

20x2

18+18

24+24

40+40

泵浦功率

KW

0.55

1.1

2.8

0.55+0.55

1.1+1.1

2.8+2.8

泵浦流量

L/MIN

35

60

100

35+35

60+60

100+100

泵浦压力

Kg/CM2

5

5.5

6.8

5.0+5.0

5.5+5.5

6.8+6.8

大电力消耗

KW

19

26

52

38

52

104

特殊功能

泵浦反转回油

警报功能

缺相/缺油/超温/过载/溢油/加热异常警报

冷却水配管

INCH

 1/2

 1/2

 1/2

 3/4

 3/4

 3/4

循环油配管

INCH

 3/4

 3/4

1

3/4x2

3/4x2

1x2

外型尺寸

MM

1250x420x1100

1250x420x1100

1450x500x1350

1350x550x1250

1350x550x1250

1435x600x1350

以上规格如有变更,恕不另行通知,特殊规格可另行设计制。
